Operating System

Windows 7 (64 bit)
Net 4.5.1 or newer

Memory

4GB (recommended 6 GB)
250 GB hard drive

Hardware & Network

i5 or equivalent CPU
(recommended quad core
2.2 GHz or better)
Graphics card w/ OpenGL 3.1 support

System Requirements

360 Degree Coverage

Our unique radar sweep, gleaning depth, and speed data from its imagery, allow the Thermal Radar to pinpoint intruders in a 3D space with a completely passive system

Geospatial Alerts

Pinpoint threats and send real-time alerts coordinates to the user or directly to a VMS. Easily track objects when used in conjunction with other camera systems to provide “slew to cue” data

Set specific Areas of Interest and Areas of Exclusion as well as sensitivity and confidence values to meet your unique environment

Cutomizable UI

Record & Playback

Automatically recorded alerts and manually recorded footage can be played back in a full 360 degrees. A list shows you the date and time when each alert or recording happened and how long it lasted. Simply click on the one you want to view.

SOFTWARE

Mobile Sentry

Fully Self-Contained Surveillance Solution

When combined with one of our tower solutions Thermal Radar products operate as a fully self contained unit providing it’s own power, communications, connectivity, analytics and alerts.

Thermal Radars unique form factor weighs less than four pounds. When combined with one of our Mobile Sentry towers, Thermal Radar and Thermal Radar Hydra can be deployed easily in remote sites with little to no supporting infrastructure.

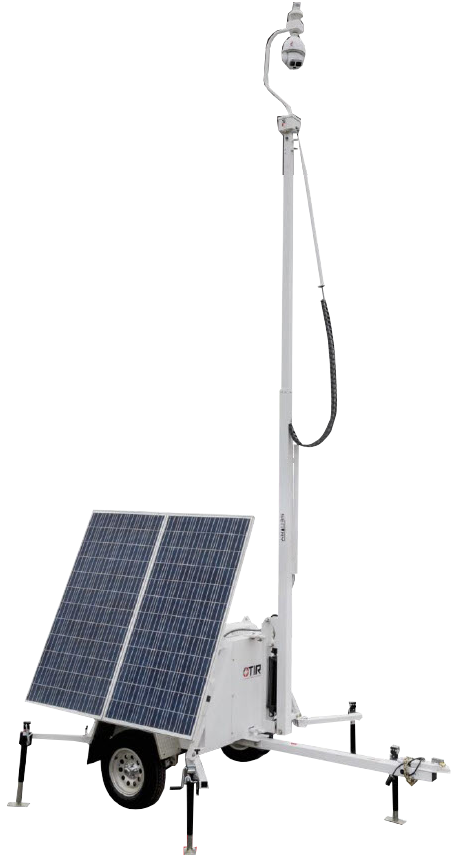

The Mobile Sentry is built to be tough and rugged. Equipped with Hydra, Thermal Radar, or Banshee, it is an award-winning 360 degree camera solution. Mobile Sentry is intelligent mobile geospatial platform providing a state-of-the-art observation and detection solution.

Mobile Sentry towers come standard with a heavy duty rugged frame, 15″ Wheels and tires, 5500lb rated axles to withstand the most rugged and toughest environment. Our towers have an average life of 12+ years. Mobile Sentry has a reliable hydraulic mast and a simple control system, allowing for quick set up and the ability to establish a secure perimeter in a matter of minutes.

Features

  • Can be deployed in minutes

  • Hydraulic mast allows variable heights and easy transport

  • Deployed Height: 17-27feet (9.1 m)

  • Solar panels allow for completely silent operation

  • All power required to run the system is onboard

  • Weight: 2100lbs

  • Solar Panel Options, 600 Watt, 1200 Watt

  • (optional) WiFi, Point to Point, & Cellular

Thermal Radar sends one video stream to your VMS containing 360 degree thermal imagery, a zoomed view of the area where an alert occurred, with a map showing where the detection occurred.  When Thermal Radar detects an intruder an alert is sent to the VMS – combined with the targeted PTZ, you have timely, actionable intelligence.

Compatible Interfaces:

Valerus
Genetec
Milestone
Avigilon
Vidsys
ExacqVision
Digital Watchdog
Wisenet
Wave

Redvision
Geutabruck
NiceVision
Dahua
Network Optix
Arteco

Qognify
Immix

Axxonsoft

Panasonic
Sony
Dahua
Hikvision
Avigilon

Thermal Radar slews the PTZ to cue upon detections, no more touring mode leaving you hoping the PTZ is at the right place when an intruder enters.

Digital Watchdog
Panasonic
Sony
Dahua
Hikvision
Avigilon

Compatible PTZ Systems:
